Features and Specifications

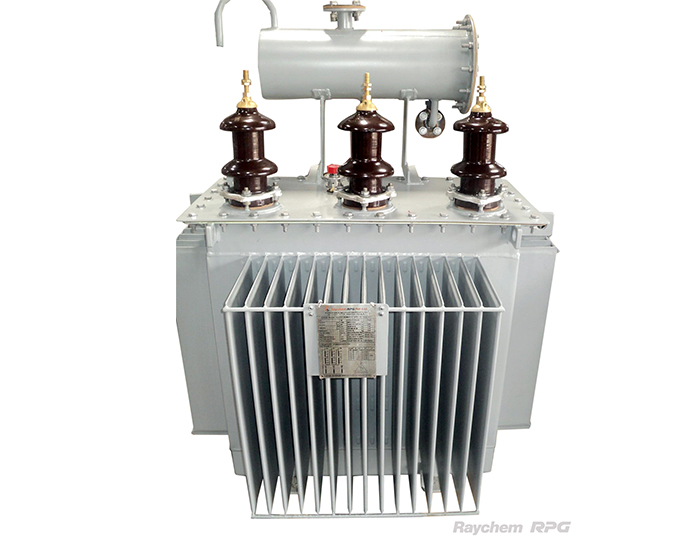

Earthing transformers provide a neutral point for systems where one is not available, ensuring proper grounding and system stability. They are widely used in industrial and utility power networks to protect equipment from fault currents and unbalanced loads. By safely dissipating fault energy, these transformers improve overall power system reliability and protect both people and equipment from electrical hazards.

  • Provides earth fault protection for ungrounded system
Equivalent Rating Up to 20 MVA
Voltage Class Up to 33 kV
Neutral Fault Current & fault duration As per customer requirement
Auxiliary Load winding Up to 630 kVA as per customer requirement
Continuous Neutral Current As per customer requirement
Frequency 50/60 Hz
Cooling ONAN/AN
Vector Group ZN0, ZNyn1 or ZNyn11
Winding Material   Cu / Al  
Tapping Off circuit links/switch
Insulating Medium Mineral Oil, Esters, Resin/Varnish

Technical Specifications

Parameter Value
Special purpose transformer with zigzag or interconnected star winding
Provides ground fault protection in 3-Phase, 3 wire system
With or without auxiliary winding for supplying local loads
Supply segments Industries
EHV Substations
